Why Choose ePower Power Supply?
1.Traditional switching power supplies may generate overvoltage when motors operate in regenerative braking mode, triggering overvoltage protection and shutting down
2.They may also trigger overcurrent protection and shut down due to excessive current caused by sudden high loads.
3.The ePower power supply features dedicated circuitry that prevents overvoltage shutdown from regenerative braking and avoids overcurrent shutdown caused by transient high loads.

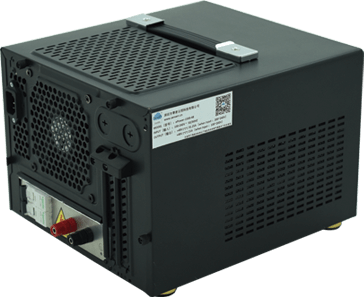

ePower Power Supply Series
The ePower series is a chassis-mounted power solution purpose-built for ZeroErr robotic joint modules. It converts AC input into stable DC output optimized for joint operations, and is available in 400W, 800W, and 1500W models.Designed for scenarios involving regenerative braking and frequent current fluctuations, ePower delivers reliable and consistent performance for robotic joints and modular systems.
Power
Our power supply units incorporate internal switching components that are certified to meet European Union CE certification.
Features
Universal AC input/full range
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
High efficiency up to 91%
Protection type: short circuit/overload/over-voltage/over-temperature
Built-in cooling fan for heat dissipation
Built-in power brake prevents excessive voltage
Electrical parameters
Model |
 ePower-400-48 |
ePower-800-48 |
ePower-1500-48 |
|---|---|---|---|
Input AC voltage |
100 ~ 240V |
||
Output DC voltage |
48V |
||
Output rated current |
 8.3A |
16.7A |
31.25A |
Output Power |
 400W |
800W |
1500W |
Brake turn-on voltage |
53V |
||
Brake turn-off voltage |
51V |
||
Operating temperature |
-20~60℃(Please refer to "Derating Curve") |
||
Overload Protection Mode |
Constant current limiting mode, which can automatically return to normal operation after the abnormal load condition is removed |
||
Short circuit protection mode |
Constant current limiting mode, which can automatically return to normal operation after the abnormal load condition is removed |
||
Over-voltage protection threshold |
55.2 ~ 64.8V |
||
Over-voltage Protection Mode |
Turn off the output voltage, restart and recovery |
||
Over-temperature protection mode |
Turn off the output voltage, automatic recovery after the temperature drops |
||
weight |
 4.7kg |
5.9kg |
8.1kg |
Maximum consumption of an actuator
Model |
eRob70 |
eRob80 |
eRob90 |
eRob110 |
eRob142 |
|---|---|---|---|---|---|
Maximum consumption(unit:A) |
3.5 |
5.5 |
12 |
16.5 |
23 |
Current consumption of the whole robot
load |
 3kg |
5kg |
10kg |
|---|---|---|---|
Maximum current consumption(unit: A) |
8 |
15 |
26.6 |
Recommended ePower |
ePower-400-48 |
ePower-800-48 |
ePower-1500-48 |
Actuator combination reference |
 |
 |
 |
Axis 1, 2, 3 are eRob80, Axis 4, 5, 6 are eRob70, |
Axis 1, 2, 3 are eRob110, Axis 4, 5, 6 are eRob70, |
Axis 1, 2 are eRob142, Axis 3 are eRob110, Axis 4, 5, 6 are eRob80, |
|
Conditions |
Payload 3kg, Reach 600mm |
Payload 5kg, Reach 900mm |
Payload 10kg, Reach 1300mm |
